Product Properties
Brand: yiteng
Model: KVV KVVR KVVP KVVRP KVV32 KVVRP32
Certification: CCC ISO CE
Origin: hebei china
Trading Information
Minimum order quantity: MOQ 3000meters
Price: FOB tianjin USD 0.5-25 per meter
Payment method: T/T L/C at sight DA DP Western Union
Supply Ability: 10000 meters per week
Delivery date: 15-25 days after payment
Conventional packaging: 100meter per coil or as per requirement
Product Description

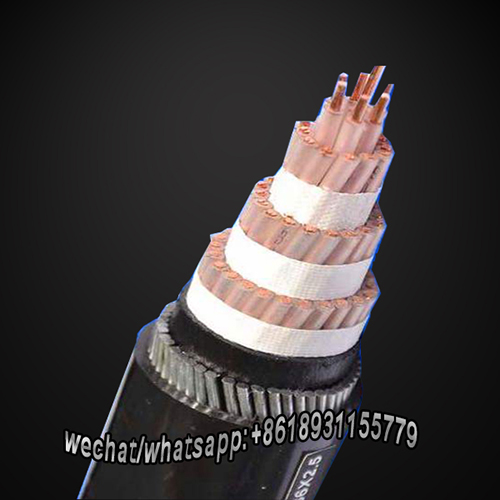

Multi core PVC insulation PVC sheath signal control cable steel wire armored
ZR ZRC RVV KVV KVVR KVVRP 7 core 16 core 24 core instrumentation control cable Application
1. Used as power and connecting cables
2. mechanical engineering for tooling machinery,
3. control unit, production lines, industrial robot and other electrical automatic equipments
4. transportation equipment, conveyor and assembly lines as well as in plant construction
5. circumstance rated voltage is up to 450/750V AC.
ZR ZRC RVV KVV KVVR KVVRP 7 core 16 core 24 core instrumentation control cable characters
1) Rated AC voltage: U0/U450/750V
2) Permitted long-term operating temperature of conductor:
| Description | Long-term operating temperature |
| PVC insulation and sheath | 70 ℃, 105℃ |
| PE insulating and sheath | 70℃ |
| Low-smoke and halogen-free, flame-retardant polyolefin or PVC insulation and sheath | 70℃,90℃,125℃ |
| Cross-linked PE or EPR insulation | 90℃ |
| F46 and silicon rubber insulation and sheath | 200℃ |
3) The lowest environment temperature:
| Description | Fixed laying | Non-fixed |
| PVC insulation and sheath | -40℃ | -15℃ |
| F46 and silicon rubber insulation and sheath | -60℃ | -20℃ |
4) Installation and laying temperature:
PVC sheath—not lower than 0℃;
Fluoroplastic sheath— not lower than -25℃
5)Permitted minimum bending radius: not less than 6times outer diameter for non-armored, interlocked or braid armored cable not less than 12 times outer diameter for copper-tape shield or steel wire tape winding, steel tape wrapping armored cable, and not less than 8 times outer diameter for fluoroplastic insulated and sheathed cable.
ZR ZRC RVV KVV KVVR KVVRP 7 core 16 core 24 core instrumentation control cable Specification
| Type
|
Product Code |
cross Area mm2 |
Core Dia. mm |
Over Bedding Dia. Mm |
Avg. Cable Dia. Mm |
Approx Weight kg/km |
Product Code |
cross Area mm2 |
Core Dia. mm |
Over Bedding Dia. Mm |
Avg. Cable Dia. Mm |
Approx Weight kg/km |
| 2C+E | 1031 | 1.5 | 3.2 | 8.4 | 13.1 | 313 | 1032 | 2.5 | 3.7 | 9.5 | 14.3 | 379 |
| 3C+E | 1041 | 1.5 | 3.2 | 9.3 | 14.1 | 360 | 1042 | 2.5 | 3.7 | 10.5 | 15.3 | 442 |
| 4C+E | 1051 | 1.5 | 3.2 | 10.2 | 15.1 | 413 | 1052 | 2.5 | 3.7 | 11.5 | 16.5 | 512 |
| 6C+E | 1701 | 1.5 | 3.2 | 11.2 | 16.6 | 528 | 1702 | 2.5 | 3.7 | 12.7 | 18.7 | 705 |
| 8C+E | 1901 | 1.5 | 3.2 | 13.9 | 20.0 | 771 | 1902 | 2.5 | 3.7 | 15.8 | 22 | 940 |
| 10C+E | 1111 | 1.5 | 3.2 | 14.6 | 20.7 | 835 | 1112 | 2.5 | 3.7 | 16.5 | 22.8 | 1028 |
| 12C+E | 1131 | 1.5 | 3.2 | 15.9 | 22.2 | 949 | 1132 | 2.5 | 3.7 | 18.1 | 25.2 | 1294 |
| 15C+E | 1161 | 1.5 | 3.2 | 16.9 | 23.2 | 1049 | 1162 | 2.5 | 3.7 | 19.2 | 26.4 | 1439 |
| 20C+E | 1211 | 1.5 | 3.2 | 19.0 | 26.2 | 1392 | 1212 | 2.5 | 3.7 | 21.6 | 29 | 1737 |
| 25C+E | 1261 | 1.5 | 3.2 | 21.3 | 28.6 | 1604 | 1262 | 2.5 | 3.7 | 24.2 | 31.7 | 2038 |
| 30C+E | 1311 | 1.5 | 3.2 | 23.6 | 31.1 | 1910 | 1312 | 2.5 | 3.7 | 26.9 | 34.6 | 2425 |
| 40C+E | 1411 | 1.5 | 3.2 | 26.8 | 34.6 | 2340 | 1412 | 2.5 | 3.7 | 30.6 | 39.4 | 3228 |
| 50C+E | 1511 | 1.5 | 3.2 | 28.4 | 37.1 | 2837 | 1512 | 2.5 | 3.7 | 32.4 | 41.4 | 3629 |
ZR ZRC RVV KVV KVVR KVVRP 7 core 16 core 24 core instrumentation control cable cable packing
1. packed in standard export drums or other ways per customer’s requirement;
2. handled and shipped carefully to ensure perfect package unpon customer’s receiving.
3. packed in circle, length 100m long.
4. packed in bundle length no less than 100m.
5. in wooden case plastic reel then on pallet
as per or as per needed
ZR ZRC RVV KVV KVVR KVVRP 7 core 16 core 24 core instrumentation control cable Certificates
the certification we have available
ISO9001 ISO14001 CCC CE ROHS SGS etc
OEM and ODM acceptable
12month gurantee
lead time 15-25 days
