70mm2 Welding Cable rubber insulated and Sheathed Welding Cable
Product Properties
Brand: Yiteng
Model: YC YH YCW
Certification: CE ISO CCC
Origin: hebei
Trading Information
Minimum order quantity: 1000meters
Price: USD 1-30 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15days after payment
Conventional packaging: 100meters per package or in wooden drum
product description
Welding Cable is a harmonized, flexible, rubber jacketed welding cable. This cable is designed for the transmissionof high currents from electric welding machines to the welding tool on manually or automatically operated line and spot welding machines. Also suitable for assembly lines and conveyor systems in the shipbuilding, automobile industry and tool making industries. H01N2-D cables retain their high flexibility even under the influence of ozone, light, oxygen, protective gases, and oils. The robust jacket and construction aids in the resistance to both hot and cold temperaturesas well as to flames. They are suitable for use outdoors in dry or damp conditions.
Construction: – Extra fine bare copper strands – Strands to VDE-0295 as listed below – Synthetic or paper separatorover core – Polychloroprene rubber (neoprene) jacket – UV, heat, cold and flame resistant
Technical: – Working voltage: 100/100 volts – Test voltage: 1000 volts – Flexing bending radius: 12.0 x Ø – Fixed bendingradius: 7.5 x Ø – Flexing Temp: -25º C to +80º C – Fixed Temp: -40º C to +80º C – Flame retardant: IEC 60332.1
>>>>>>>>contact us
sales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
Approvals: – HD22.6 S2 – VDE-0282 Part-6
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
Packaging & Shipping

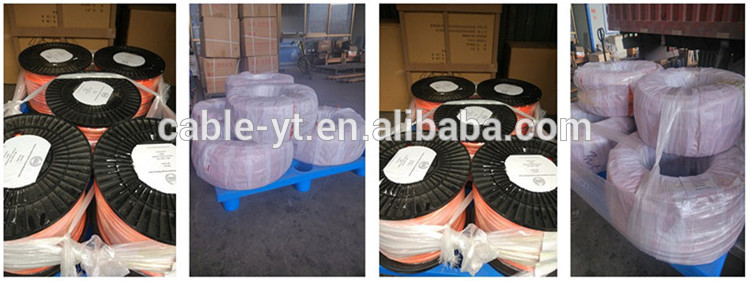

Packaged with Standard Export Wooden or Steel Drums or as per Customer’s Requirement
Shipped within 7-15 Days once Order Confirmed
4. Main Technical Parameter for Flexible Rubber Insulated Welding Cable
H01N2-D 60245 IEC 81 (YH) 60245 IEC 82(YHF)
| Nom. Area mm2 |
Max. Dia. of wire mm |
Nom. Cover Thickness mm |
Average O.D. mm | Maximum DC Resistance at 20℃ Ω/km |
||
| Min. | Max. | Tinned copper | Un tinned copper | |||
| 10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 | |
| 25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 | |
| 35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 | |
| 50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
| 70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
| 95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 | |
| 120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
| 150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 | |
| 185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 | |
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
5. electrical characteristics
| H01N2-D Datasheet | ||||||
| Item | conductor structure | Stranded OD MM | Insulation thickness MM | Sheath thicknessMM | Appr OD MM | Appr Weight KG/KM |
| 1C10 | 318/0.2mm | 4.3 | 1.3 | 1.3 | 9.5±1 | 185 |
| 1C16 | 509/0.2mm | 5.3 | 1.4 | 1.4 | 10.9±1 | 257 |
| 1C25 | 796/0.2mm | 6.2 | 1.6 | 1.6 | 12.6±1 | 360 |
| 1C35 | 1115/0.20mm | 7.8 | 1.7 | 1.8 | 14.5±1 | 490 |
| 1C50 | 1592/0.20mm | 9.4 | 1.7 | 1.8 | 16±1 | 680 |
| 1C70 | 2210/0.20mm | 11.4 | 1.8 | 2.2 | 20±1 | 920 |
| 1C95 | 3025/0.20mm | 12.9 | 2 | 2.5 | 23±1 | 1264 |
| 1C120 | 3820/0.20mm | 15.2 | 2.2 | 2.5 | 24.6±1 | 1693 |
| 1C150 | 3050/0.25mm | 17 | 2.2 | 2.5 | 26.4±1 | 2103 |
| 1C185 | 3770/0.25mm | 18.6 | 2.5 | 2.5 | 28.6±1 | 2610 |
| printing: | YR NOV 2020 1C35MM² CU/ EPDM/ CPE -40℃ ~105℃ 0001M or as per requirement | |||||
| copper: | 99.99% purity annealled copper class5 | |||||
| insulation: | EPDM rubber | working temp -40℃ to 105℃ | white color | |||
| sheath: | CPE / Neoprene rubber | working temp -40℃ to 105℃ | black color | |||
| standard: | Confirmity to CE / ISO9001 / BS / Rohs / IEC | |||||
| rated voltage | 100V | |||||
| Min bending radius | 6 times Overall diamter | |||||
| electrical characters | Current rating for single duty cycle operation over a period of 5 minutes | |||||
| cross section | 100% | 80% | 60% | 35% | DC resistance Ohm @20℃/km | |
| 10 mm² | 100A | 103A | 108A | 122A | 1.91 | |
| 16 mm² | 135A | 145A | 175A | 230A | 1.21 | |
| 25 mm² | 180A | 195A | 230A | 300A | 0.78 | |
| 35 mm² | 220A | 240A | 290A | 375A | 0.554 | |
| 70 mm² | 350A | 380A | 460A | 600A | 0.272 | |
| 95 mm² | 420A | 470A | 560A | 730A | 0.206 | |
| 120 mm² | 500A | 540A | 650A | 850A | 0.161 | |
| 150 mm² | 580A | 630A | 750A | 980A | 0.129 | |
| Note: Ambient air temperature 25℃/ Maximum conductor temperature 85℃. As conductor temperature varies according to the time in use as well as current, ratings shown are given as a guide | ||||||
| Advantages: | oil and water proof/ wearing proof/ acid and alklai resistance/weahter proof | |||||
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
single sheath insulation welding cable/ double sheath insulation welding cable
Packaging & Shipping
Packaged with Standard Export Wooden or Steel Drums or as per Customer’s Requirement
Shipped within 7-15 Days once Order Confirmed
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
