product name

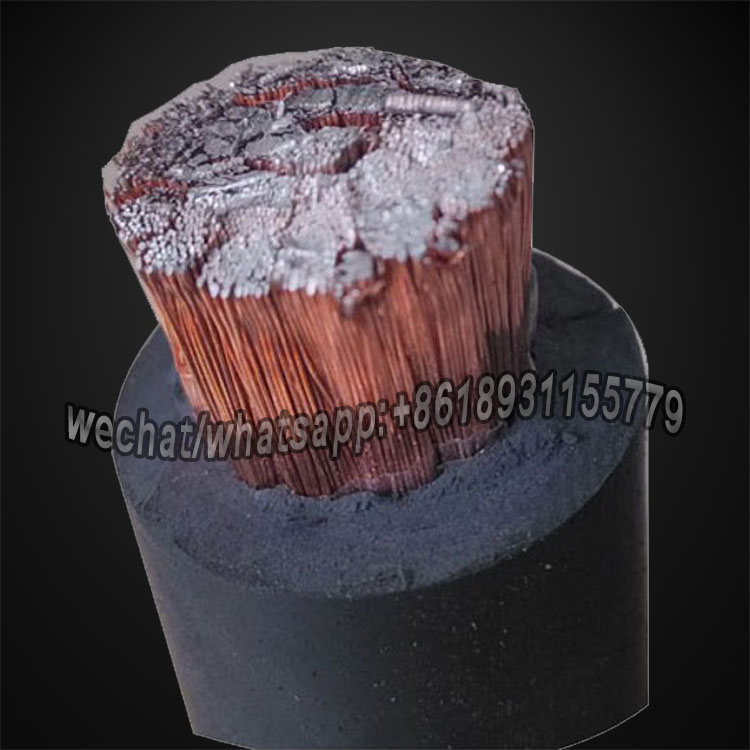

Copper conductor single rubber insulated welding cable flexible rubber welding cable
1C50MM2 1C25MM2
product properties
Brand: Yiteng
Model: YC YH YCW
Certification: CE ISO CCC
Origin: hebei
Trading Information
Minimum order quantity: 1000meters
Price: USD 1-30 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000meters per week
Delivery date: 10-15days after payment
Conventional packaging: 100meters per package or in wooden drum
product description
1.1. The welding cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.
1.2. The long term permissible working temperature of cable conductive core is not more than 65°C.
Nominal Cross-section 10mm2-185mm2
2. Type & Specification for Flexible Rubber Insulated Welding Cable
Type | Name | Core | Cross Section | Working temperature of core ≤(℃) |
YH | Natural Rubber sheath for welding machine cable | 1 | 10-185mm2 | 65 |
YHF | Chloroprene Rubber or other synthetic Rubber sheath welding machine cable | 1 | 10-185mm2 | 65 |
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
Description | International type | Chinese type |
Welding cable with Rubber compound sheath |
H01N2-D ( Common flexible) |
60245 IEC 81 YH |
Welding cable with Polychloroprene compound (PCP) or other equivalent synthetic elastomeric sheath |
H01N2-E ( Extra flexible) |
60245 IEC 82 YHF |
3. Applications for Flexible Rubber Insulated Welding Cable
This type of welding cable is suitable for welding machine as secondary earth wire with secondary side to-ground voltage not more than 200V AC and impulse voltage peak 400V DC, or for connecting electrode holders.
Continuous operating temperature ≤60℃.
4. Main Technical Parameter for Flexible Rubber Insulated Welding Cable
H01N2-D 60245 IEC 81 (YH) ;60245 ;IEC ;82(YHF)
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
Nom. ; Area ; mm2 |
Max. ;Dia. ; of ;wire ; mm |
Nom. ; Cover ; Thickness ; mm |
Average ;O.D. ;mm | Maximum ;DC ; Resistance ;at ;20℃ Ω/km |
||
Min. | Max. | Tinned ;copper | Un tinned ;copper | |||
10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 | |
25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 | |
35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 | |
50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 | |
120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 | |
185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 |
>>>>>>>>contact ussales@cablesyt.com>>>>>>>> wthatsapp/wechat:+86 18931155779
Packaging & Shipping
Packaged with Standard Export Wooden or Steel Drums or as per Customer’s Requirement
Shipped within 7-15 Days once Order Confirmed
