product name
MICC MI cable BTTZ copper sheathed mineral insulated cable
5C25mm2
3C2mm25+2x16mm2
product properties
Brand: yiteng
Model: BTTZ BTTQ BTLY
Certification: ISO CCC CE
Origin: Hebei
Trading Information
Minimum order quantity: 1000meters
Price: FOB tianjin USD 2-80 per meter
Payment method: T/T L/C DA DP Western Union
Supply Ability: 10000 meters per week
Delivery date: 10-15 days after payment
Conventional packaging: In Drum or as per requirement
product description
MICC MI cable BTTZ copper sheathed mineral insulated cable
Product Description
Constructions:
Product Name flame retardant MI cable BTTZ/BTTQ/BTLY fireproof mineral insulated cable
Product standard DIN VDE 0295 and IEC 228 standard twisted copper wires,GB5023.6-2012 and company standard
Core: 1 2 3 4 5 3+1 3+2 4+1 Cores
Working life : <25years
Type of conductor : copper,class 5
Material of conductor: fine strands of oxygen-free Copper
Material of insulation: mineral compound (MgO)
Color of core insulation Red/White/Blue/Black/Green/Yellow(Optional)
Material of Sheath low smoke halogen free Polyolefine(LSZH/LSOH PO)
Voltage 600~1000 VOLTS
Advantage Down to depths 500 mtrs
Cross Section 0.25mm2~95.00mm2/AWG1~AWG14
Minimum bending radius Cable installtion allowed bending radius should no less than 6 times of cable width
Flame resistance pass GB/T18380.1-2001 test and GB5023.6-2012
Isolated sheath Aluminum(AL)
Application:
Public service Railway stations, road & rail tunnels, public lighting, car parks, public service buildings. |
Property & personal safety Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches. |
High temperature situation Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings. |
Potentially explosive area Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages. |
Hygiene situation Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants. |
General installation Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power. |
Special Characteristics:
Fire resistant Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387. |
High operation temperature Continuous operating temperature up to 250 C, and for short periods up to approaching the melting point of copper 1083 C. |
Inherent flameproof barrier With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames. |
High mechanical strength Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening. |
Pliable Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes. |
Non-ageing, Integral earth continuity, Small overall diameter Waterproof, Corrosion resistant, Radiation resistant Excellent electric shielding, Easy installation, Long service life |

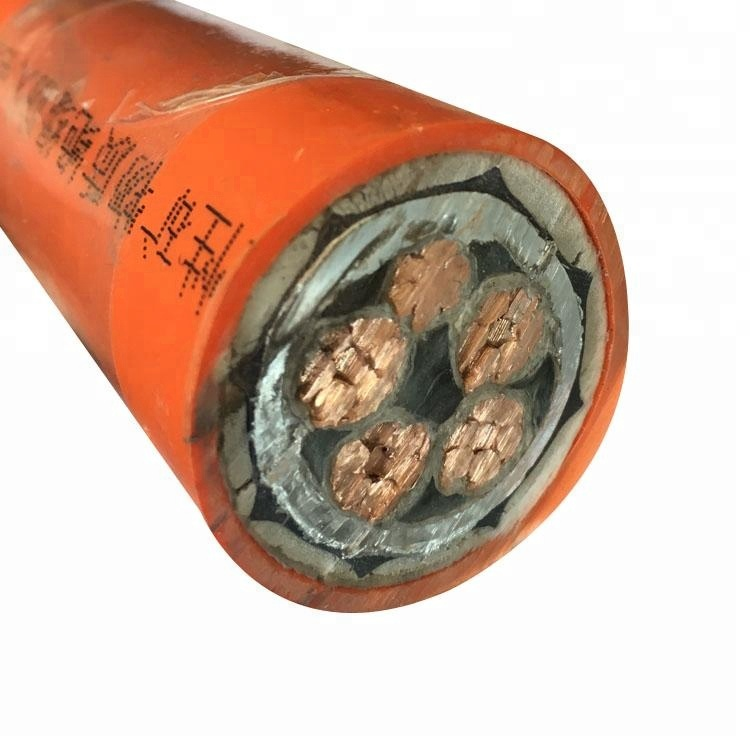

Pictures’ detail:
flame retardant cable,fireproof/fire resistant Mineral insulated corrugated cable
